How Much Does a Pigging System Cost? Price, Components & ROI Explained

How much does a Pigging System cost? The price of a Pigging System varies significantly depending on project requirements. The total system cost typically ranges from 50,000 RMB to 30,000,000 RMB, depending on system scale, automation level, and site conditions. Installation costs are also influenced by system complexity, pipeline specifications, automation configuration, and whether a customized solution is required. If the customer already has a PFD (Process Flow Diagram) or basic design, quotation can usually be provided quickly; otherwise, engineering design evaluation is required first.

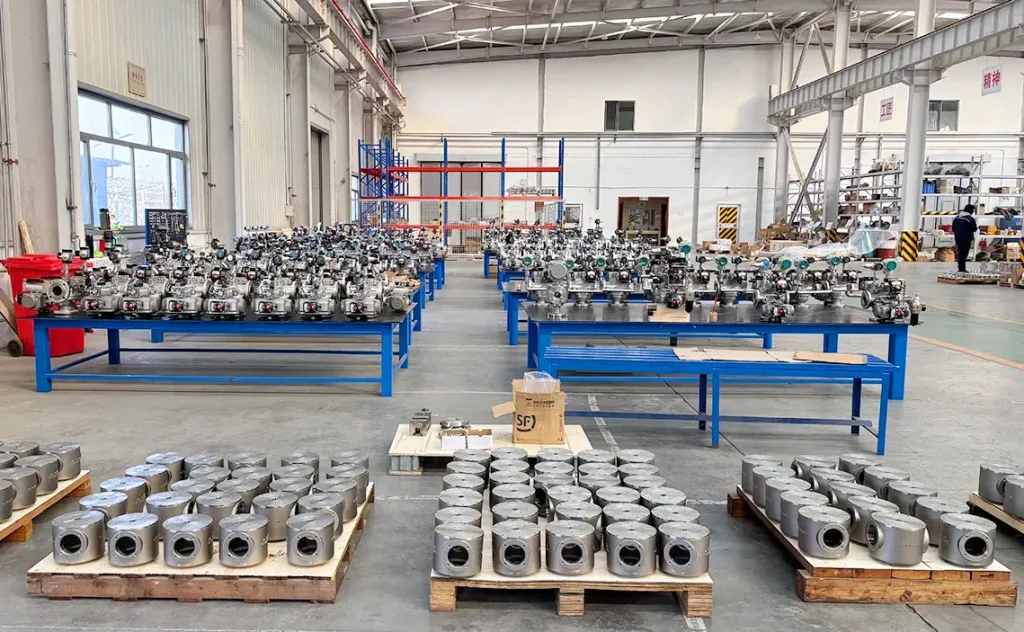

Cost includes: core equipment (pigs, pig launchers and receivers), pipeline adaptation components, consumables, special tools, and control systems. Installation, commissioning, and maintenance services are optional and can be flexibly selected based on customer requirements.

Main Cost Components of Pigging Systems

1. Core Equipment Cost (Highest Share)

Pig

The pig is the key operating component of a pigging system. Its cost varies depending on application type (cleaning, inspection, or sanitary grade), size specifications, and pipeline compatibility requirements. Material selection such as polyurethane, fluororubber, or silicone also affects wear resistance, corrosion resistance, and service life. In addition, pigs integrated with sensors for tracking, positioning, or inspection functions have higher manufacturing complexity and cost, resulting in different pricing levels.

Launcher & Receiver

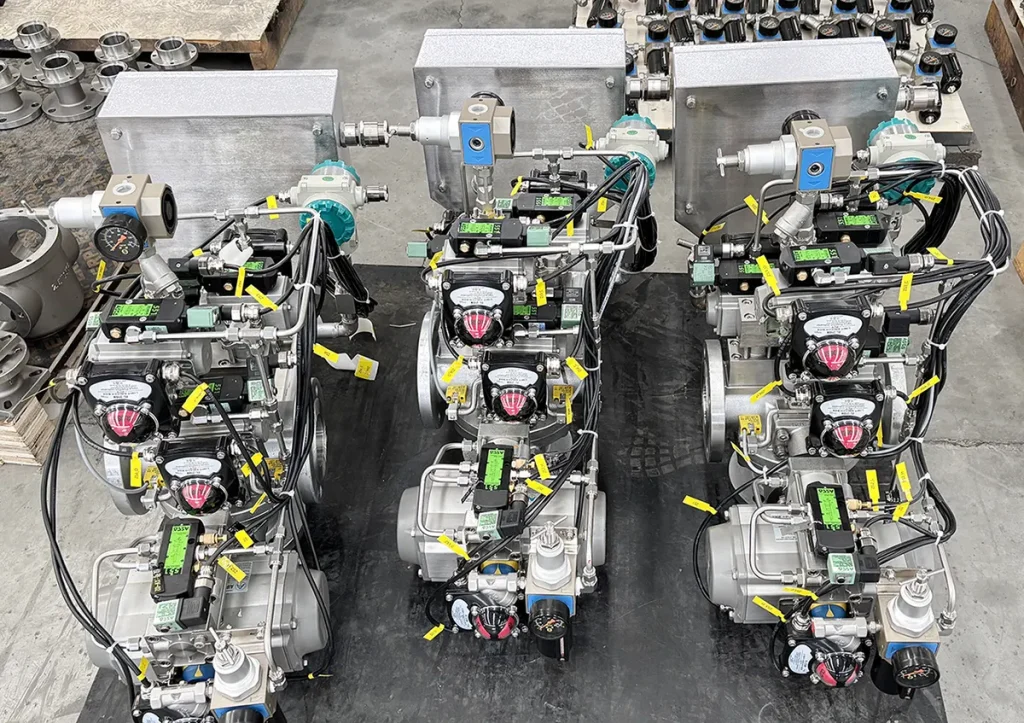

Pig launchers and receivers are critical components of the system. Their cost depends on pipeline diameter, design pressure rating, material selection (carbon steel or stainless steel), and automation level. Depending on operating conditions, different valves, actuators, and control systems may be required to ensure safe launching, stable operation, and reliable pig receiving, guaranteeing efficient and safe pigging performance.

Sealing & Pipeline Adaptation Components

Sealing and pipeline adaptation components include high-precision cold-drawn pipes, pigging tee fittings, hot-bent seamless elbows, sealing rings, clamps, and welded sleeves. These components must be customized according to pig size, operating pressure, and pipeline conditions to ensure stable sealing performance, smooth operation, and to prevent pig jamming or restriction during operation.

2. Control System Cost

Control system cost depends on the level of automation and communication configuration, ranging from basic local manual control (low cost) to PLC-based automation systems and fully integrated remote monitoring solutions. In large plants or long-distance pipelines, signal transmission often requires relay cabinets, and industrial communication systems such as AS-i bus can be used, offering a more cost-effective and simplified alternative to traditional multi-core cabling.

3. Installation & Commissioning (Optional)

Installation and commissioning services can be selected based on project requirements. If the customer has an in-house construction team, installation can be completed independently to reduce overall cost. If provided by the supplier, services typically include equipment installation, system commissioning, and operator training to ensure stable operation and fast startup.

4. Maintenance Cost (Optional)

Maintenance costs depend on system operating cycles and service requirements, including routine maintenance, spare part replacement, and system upgrade support. Regular inspection helps ensure long-term stable operation, reduce failure risks, and extend equipment lifespan, while timely replacement of wear parts and control system upgrades improve overall efficiency and reliability.

Key Factors Affecting Pigging System Price

1. Pipeline Conditions

Pipeline conditions significantly affect system cost, including diameter, length, material selection, operating pressure, temperature, and layout complexity, all of which influence system design and configuration requirements.

2. Automation Level

Costs increase with higher automation levels, from manual systems to fully automated solutions and PLC/SCADA-integrated systems, where higher complexity leads to higher investment.

3. Customer-Supplied Components

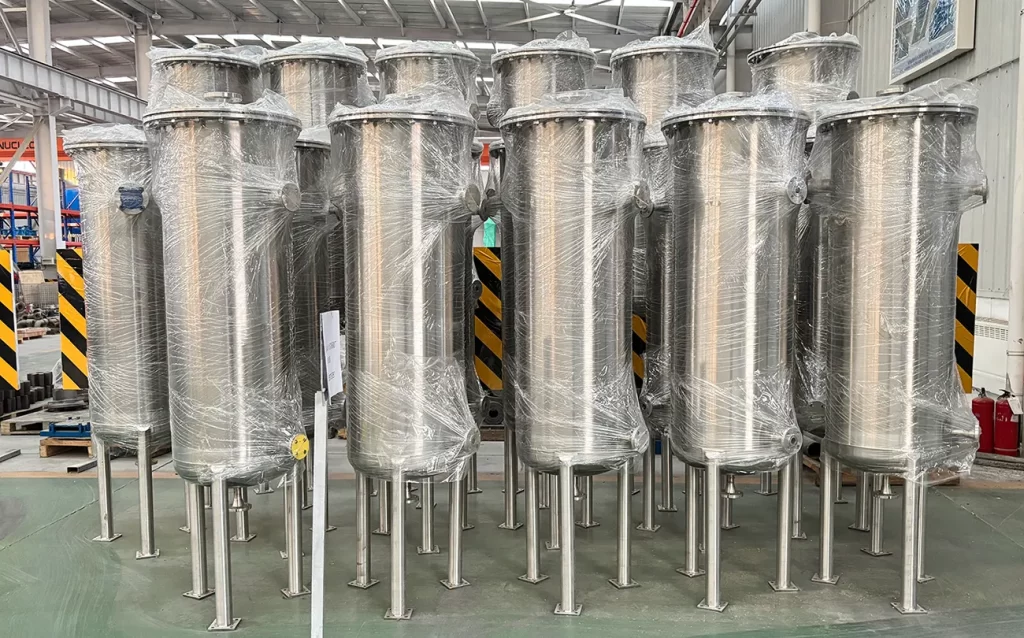

Some non-core components can be supplied by the customer to reduce overall cost, such as air receivers (air tanks) for stabilizing air pressure and supporting pneumatic systems.

4. Industry Differences

Different industries have different requirements. Food and pharmaceutical industries require higher sanitary standards and more precise equipment, while oil & gas and chemical industries typically require higher automation and system robustness due to more complex operating conditions.

5. Regulatory & Compliance Requirements

Project costs are also influenced by industry regulations and safety standards, such as certification requirements, explosion-proof design, and anti-leakage safety compliance, all of which may increase system investment.

Pigging System ROI (Return on Investment)

Although the initial investment is relatively high, pigging systems typically achieve ROI within 6–12 months by increasing product recovery, reducing waste, lowering cleaning costs, and preventing cross-contamination, significantly improving overall production efficiency.

How to Get an Accurate Quotation?

To obtain an accurate pigging system quotation, key process and site information must be provided, including PFD diagrams, pipeline layout drawings, product characteristics (such as viscosity and corrosiveness), automation requirements, and industry type. This allows engineers to quickly evaluate system configuration and provide a precise customized solution and quotation.

The cost of a pigging system depends on specific application requirements and configuration levels, ranging from basic systems to fully automated turnkey solutions. Although initial investment is relatively high, it offers significant advantages in product recovery, pipeline cleaning, efficiency improvement, and cost control. Contact BJVP for a customized pigging solution and detailed quotation: ✔ Custom Design ✔ Full System Supply ✔ Turnkey Project Delivery.
